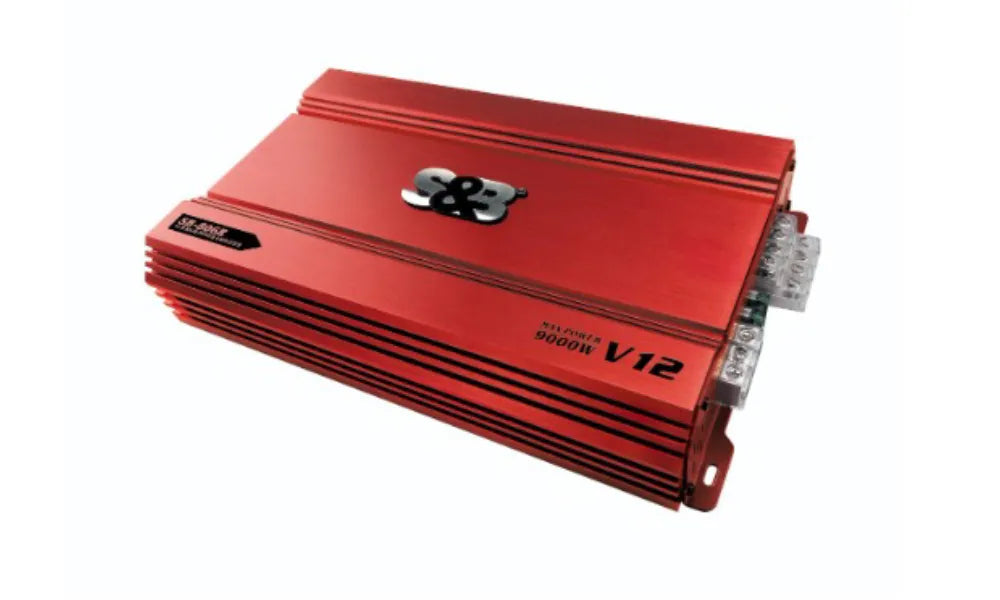

Sound Blast - SB 806R Predator Series Amplifier

Unleash powerful and precise sound control with the Sound Blast SB 806R Predator Series Amplifier. Built for audio enthusiasts who demand performance, this sleek 4-channel amplifier offers flexible power configurations and advanced tuning options. Its high-efficiency design delivers clear, distortion-free output while maintaining thermal stability and reliability across driving conditions.

Model: Sound Blast SB 806R rator Series

Amplifier Type: 4‑Channel amplifier (Class D or high‑efficiency A/B depending on variant)

Power Output:

80 W RMS × 4 channels @ 4 Ω

130 W RMS × 4 channels @ 2 Ω

260 W RMS when bridging two channels @ 4 Ω (x2 bridged pairs)

Frequency Response:

Stereo mode: 20 Hz – 20 kHz

Bridged mono mode: 10 Hz – 250 Hz

Signal-to-Noise Ratio: ≥ 90 dB

Total Harmonic Distortion: ≤ 0.1%

Input Sensitivity: 100 mV to 6 V adjustment

Crossover Controls:

Per-channel High-Pass Filter (adjustable 50 Hz – 20 kHz)

Bass Boost: Up to +12 dB at 45 Hz

Cooling System:

Large extruded heatsink

Automatic temperature-controlled fan (quiet operation)

Protection Circuitry:

Overload protection

Short-circuit protection

Over-temperature safety

Under/over-voltage indicators

Inputs and Outputs:

Stereo RCA inputs and pass-through outputs

Speaker-level input for systems without RCA connectors

Operating Voltage: 12 V DC (car-standard electrical system)

Recommended Fuse Rating: 40–60 A depending on installation setup

Physical Dimensions:

Approx. 240 × 165 × 55 mm (L × W × H)

Weight: ~1.6 kg

60 W RMS (120 W peak) power delivers clean, distortion-free sound.

Premium 91.5 dB sensitivity ensures loud playback even from stock head units.

Wide frequency response (60 Hz–21 kHz) covers deep bass to bright highs.

Polypropylene woofer + Mylar inverted‑dome tweeter for balanced mid and premium visibility.

Mounting depth approx. 2.5″ with included mesh grilles hassle free installation
