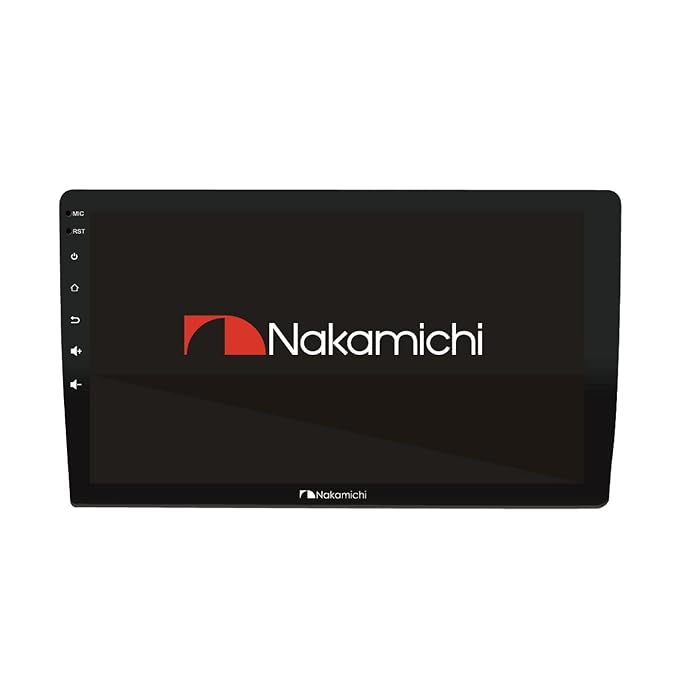

NAKAMICHI NAM 5230 9" Inch (2GB RAM+32 )

Upgrade your vehicle’s infotainment experience with the Nakamichi NAM 5230, a 9″ Android head unit powered by a quad-core A7 processor. Featuring an HD-capacitive touchscreen, comprehensive connectivity, and built-in audio tuning tools, it supports wireless Apple CarPlay and Android Auto via the ZLINK app for smartphone mirroring. Loaded with multimedia playback support, GPS navigation, dashcam compatibility, and a 12‑band sound EQ, this unit delivers convenient performance for both modern drivers and daily commuters.

Model: Nakamichi NAM 5230 (also sold as NAM5230 ZLINK)


Display: 9″ capacitive IPS touchscreen, 1280 × 720 resolution (~500 nits brightness)

System & Processor: Android NK 11 (Android 11 variant), quad‑core A7 @ ~1.3 GHz


Memory & Storage: 2 GB RAM, 32 GB internal flash storage


Audio Output: Internal amp output rated at 50 W × 4 channels; pre‑outs from 2 to 4 channels plus subwoofer support


Sound Tuning: Built‑in 12‑band ASP EQ with heavy‑bass adjustment and loud/gain control


Connectivity:

Wireless Apple CarPlay & Android Auto via ZLINK app

MirrorLink (iOS & Android)

Bluetooth v4.0 with A2DP & file sharing

Wi‑Fi and mobile hotspot support


Media & Applications:

Supports MP3/APE/AAC/FLAC, and video formats H.264, MP4, AVI, MKV, FLV

Picture‑in‑picture video playback, APK installation enabled
Nakamichi Car Audio India

Navigation & Radio:

Built‑in GPS positioning

Digital FM radio tuner; AM support varies by region


Drivestylish

Camera & DVR Support:

Compatible with 720p or 1080p AHD cameras, reverse trigger support

USB DVR preview and playback, dashcam video display capability



Lighting & Aesthetics: Multi‑color ambient RGB lamp
SatkhiraNet

Electrical & Build:

Operating voltage: 10.5–16 V DC, typical 14.4 V; net weight ~780 g

Operating temperature: −10 °C to +70 °C; storage to +80 °C


User Interface & Tools:

Touch controls with reset pin, supports steering wheel integration

Picture-in-picture, theme support, multi-language UI

Android NK 11.0 OS with MirrorLink support for Android and iOS devices.

9″ capacitive IPS touchscreen (1280×720 AHD) with Picture-in-Picture video playback.

50 W × 4 internal amplifier plus 2.1 V front/rear/sub pre‑outs for external amps.

Built-in 12‑band ASP EQ with heavy bass and loud gain features.

Supports 720/1080p video playback, lossless music and dual USB ports.
